TypeError: Cannot Convert to Float (Plotting Issues) - How to Fix It

Answer

This error occurs when matplotlib or other plotting libraries try to plot data that contains non-numeric values like strings, mixed types, or objects. Fix it by converting your data to numeric types, handling NaN values, or ensuring you're passing the correct columns to the plot function.

Why This Happens

Plotting libraries need numeric data for axes, but your DataFrame might contain strings, objects, or mixed types that look numeric but aren't. Common causes: columns imported as strings, categorical data passed to numeric axes, datetime objects not properly converted, or NaN/None values that can't be cast to float.

Solution

The rule: check dtypes before plotting. Convert strings to numeric with pd.to_numeric(), handle NaN with dropna() or fillna(), and convert dates with pd.to_datetime().

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np

df = pd.DataFrame({
    'x': ['1', '2', '3', '4', '5'],  # strings, not numbers
    'y': [10, 20, 'thirty', 40, 50],  # mixed types
    'date': ['2024-01-01', '2024-01-02', '2024-01-03', '2024-01-04', '2024-01-05']
})

# ❌ Problematic: plotting string columns
plt.plot(df['x'], df['y'])
# TypeError: cannot convert to float

# ✅ Debug: check dtypes first
print(df.dtypes)
# x       object
# y       object
# date    object

# ✅ Fixed: convert to numeric
df['x'] = pd.to_numeric(df['x'])
df['y'] = pd.to_numeric(df['y'], errors='coerce')  # 'thirty' becomes NaN
plt.plot(df['x'], df['y'])

# ✅ Fixed: drop NaN values before plotting
df_clean = df.dropna(subset=['y'])
plt.plot(df_clean['x'], df_clean['y'])

# ❌ Problematic: datetime as string
plt.plot(df['date'], df['y'])
# TypeError or garbled x-axis

# ✅ Fixed: convert to datetime
df['date'] = pd.to_datetime(df['date'])
plt.plot(df['date'], df['y'])

# ✅ For categorical x-axis, use bar plot or convert to codes
df_cat = pd.DataFrame({
    'category': ['A', 'B', 'C', 'D'],
    'value': [10, 20, 30, 40]
})
plt.bar(df_cat['category'], df_cat['value'])  # bar works with strings

# ✅ Debug: find problematic values
for col in df.columns:
    try:
        df[col].astype(float)
    except (ValueError, TypeError):
        print(f"Column '{col}' has non-numeric values:")
        print(df[col][pd.to_numeric(df[col], errors='coerce').isna()])

# ✅ With Polars, convert to pandas for matplotlib
import polars as pl
df_polars = pl.DataFrame({'x': [1, 2, 3], 'y': [10, 20, 30]})
plt.plot(df_polars['x'].to_numpy(), df_polars['y'].to_numpy())

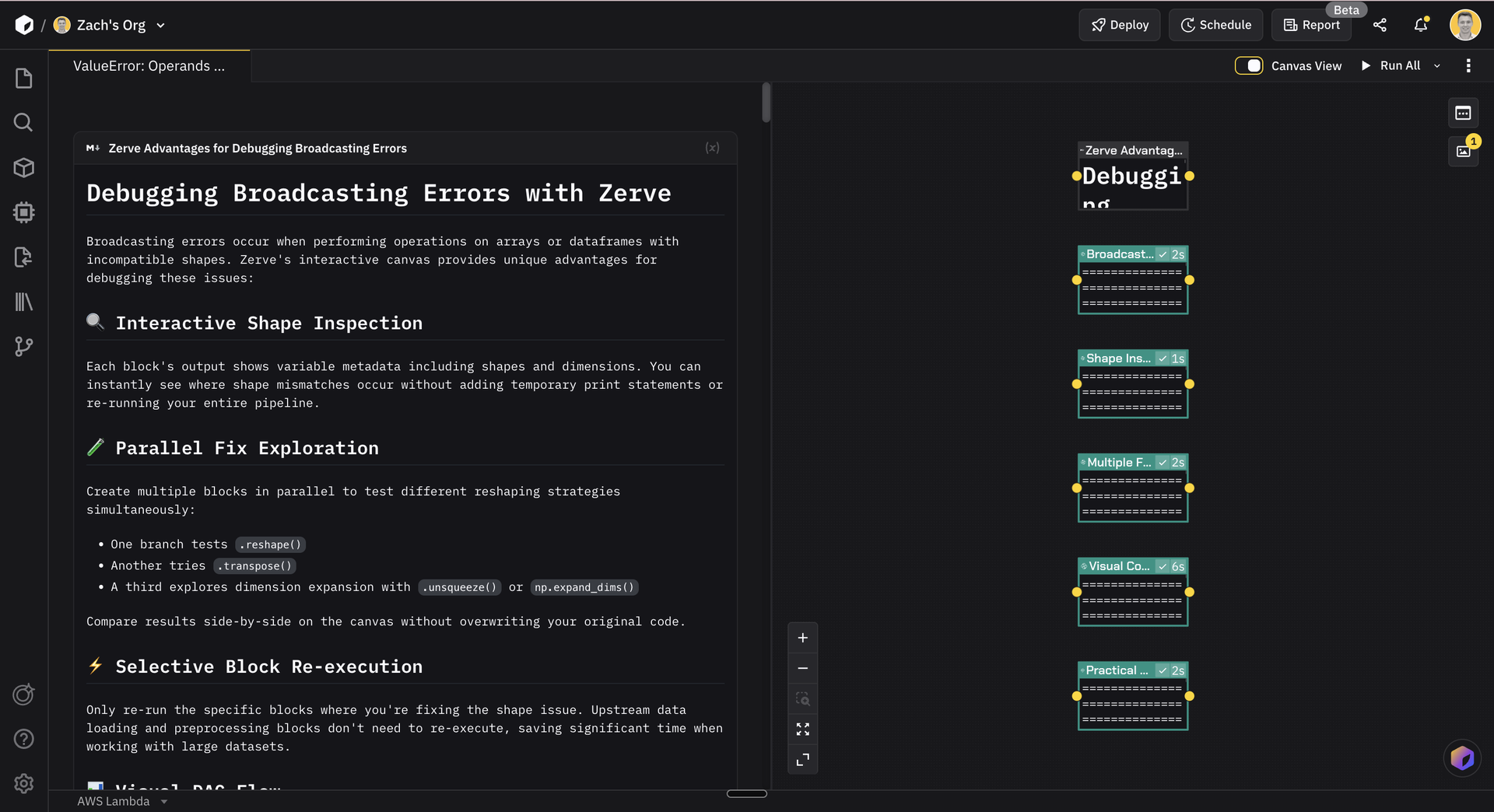

Better Workflow
